Can Autel IM608 Support DOIP & CAN FD Protocol?

The answer is yes. Autel IM608/ IM608 Pro will need to work with adapter while IM608 Pro2 can directly support. If you have a IM608 and need this function, then purchase a Autel MaxiVCI V200 or CAN FD Adapter will work.



What is worth mentioning that Autel IM508 series can only support CAN FD protocol. Details please refer to the comparison table below.


IM508 vs. IM508S vs. IM608Pro vs. IM608 Pro2

Item Autel IM508 Autel IM508S Aute IM608/ IM608 Pro Autel IM608 Pro2
VCI Built-in Built-in JVCI JVCI+
Programmer XP200 XP200 XP400Pro XP400Pro
CPU 4*1.6GHz(A9) 4*1.8GHz(A55) 4*1.3GHz(A7)


4*2.2 GHz(A73)


OS Android 4.4 Android 11 Android 4.4.2 Android 10.0
Memory 1G RAM, 64G Flash 4G RAM, 64G Flash 2G RAM, 64G Flash 4G RAM, 128G Flash
Display 7 inches, 1024*600 7 inches, 1024*600 10.1 inches, 1920*1200 10.1 inches, 1920*1200
Battery 5000mAh 5000mAh 15000mAh 15000mAh
DoIP × × √ (need adapter) √
CAN FD √ (need adapter) √ (need adapter) √ (need adapter) √



By using with MaxiVCI V200, it can add DOIP & CAN FD.

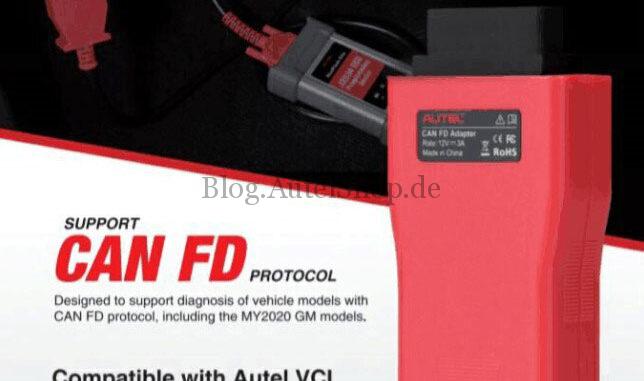

By using with CAN FD Adapter, it can support CAN FD protocol.



* It’s not recommended to pair Autel tablet with VCI of other models, may work but untested.


What Autel VCI support DOIP & CAN FD?

MaxiVCI V200, MaxiFlash VCMI, MaxiFlash VCI
