What’s different between Autel MP900TS, MP900BT, MK800Z-BT and MK808S diagnostic tool? Here we’ve compared them from price, hardware configuration to software features, trying to help make it clear.
Comparison Table
| Item | Autel MaxiPRO MP900TS | Autel MaxiPRO MP900BT/ MP900Z-BT | Autel MaxiCOM MK808Z-BT | Autel MaxiCOM MK808S/ MK808Z |

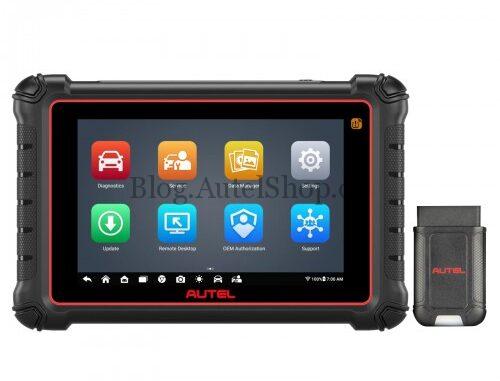

| Image |  |
 |
 |
 |
| Reference price | €1,209 | €1,047 | €418 | €339 |
| Released time | 2023 | 2023 | 2022 | 2022 |
| RAM+ROM | 4G+64G | 4G+64G | 4G+64G | 4G+64G |
| Battery capacity | 7700mAh | 7700mAh | 5000mAh | 5000mAh |
| Android version | Android 11 | Android 11 | Android 11 | Android 11 |
| Screen size + resolution | 8 inch, 1280*800 | 8 inch, 1280*800 | 7 inch, 1024*600 | 7 inch, 1024*600 |
| Wi-Fi | 2.4&5 GHz | 2.4&5 GHz | 2.4&5 GHz | 2.4&5 GHz |
| Camera | Rear 8 megapixel | Rear 8 megapixel | × | × |
| VCI | V150 | V150 | VCI Mini | Main cable |
| Read & clear codes | √ | √ | √ | √ |
| Live data | √ | √ | √ | √ |
| Service | √ | √ | √ | √ |
| Special function | √ | √ | √ | √ |
| Active test | √ | √ | √ | √ |
| BMW/Porsche/ VW online coding | √ | √ | × | × |
| BMW/ VW/ Audi/ Skoda hidden feature | √ | √ | × | × |
| VW/ Audi/ Skoda/ Seat/ Man LD guidance | √ | √ | × | × |
| Auto VIN | √ | √ | √ | √ |
| Scan VIN | √ | √ | × | × |
| Scan License | √ | √ | × | × |
| Remote Desk | √ | √ | √ | √ |
| DoIP/ CAN FD | √ | √ | × | × |
| Pre & Post scan | √ | √ | × | × |
| WiFi print | √ | √ | × | × |
| Endoscope (MV105S/ MV108S) | √ | √ | √ | √ |
| Battery test (BT506) | √ | √ | √ | × |
| TPMS | √ | × | × | × |
| Report on cloud | √ | √ | √ | √ |
| Language | Muti-language | Muti-language | Muti-language | Muti-language |
| IP limitation | × | × | × | × |
| Upgrade | 1 free year | 1 free year | 1 free year | 1 free year |
| Renault gateway access | √ | √ | √ | √ |
Differences
- Price
Autel MP900TS > MP900BT > MK808Z-BT > MK808S
MP900TS is the highest price while MK808S is the cheapest.
- Hardware
Autel MP900TS = MP900BT > MK808Z-BT > MK808S
– Both MP900TS & MP900BT are equipped with same hardware configuration. Meanwhile, they have larger battery capacity and screen than the other two.
– MK808Z-BT supports wireless connection via VCI Mini while MK808S supports wired connection via cable.
- Software
Autel MP900TS > MP900BT > MK808Z-BT > MK808S
– MP900TS supports most diagnostic features, MP900BT places the second.
– Only MP900TS supports TPMS service like program or activate sensors, etc.
– Both MP900TS & MP900BT can support to do advanced diagnostics such as BMW/Porsche/ VW online coding, BMW/ VW/ Audi/ Skoda hidden feature, scan VIN, scan License, DoIP/ CAN FD, pre & post scan, WiFi print while the others cannot.
– Only MK808S cannot work with BT506 battery tester since this function needs Bluetooth connection.
Conclusion
If you need to do advanced diagnosis, then Autel MP900TS & MP900BT are the good choice. Especially MP900TS can also do TPMS comprehensive functions.
If you only need basic diagnostic function, then both Autel MK808Z-BT & MK808S are the best.
