BMW X6 ABS module programming is performed using the Autel MaxiSYS Ultra for ECU replacement, online coding, and system adaptation.
Selective Programming is required during BMW ABS module replacement to ensure only the replaced ECU is updated and to prevent full vehicle programming overwrite.
Stable voltage supply and Ethernet communication are required during BMW online programming to maintain ECU stability and avoid programming interruption.
1. Pre-Programming System Check (Topology Diagnosis Layer)
Before programming, the Autel Ultra performs a full BMW control unit topology scan.

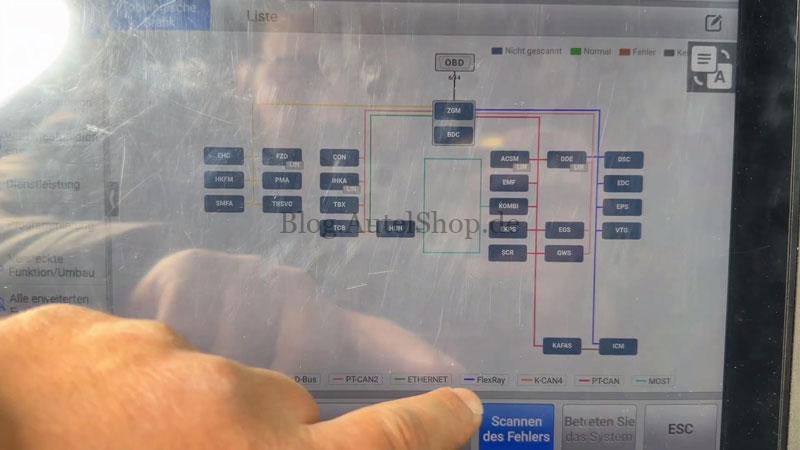

The topology view displays all ECU communication networks and is used to verify system integrity before coding begins.
Key diagnostic signals in BMW topology:
- Blue line (FlexRay network): chassis and stability communication system
- Red line (PT-CAN network): powertrain and drivetrain communication path
- Missing ECU in topology: indicates complete communication loss or module offline state
Topology scan is used to detect communication faults, CAN/FlexRay interruption, or ECU non-response before any programming action is executed.
2. Programming Logic Flow (BMW X6 ABS System)
BMW ABS programming follows a controlled execution chain:
Scan → Identify ECU → Select replacement module → Selective Programming → Automatic coding → Verification
Selective Programming ensures only the replaced ABS/ESP module is programmed, avoiding unnecessary updates to other control units in the vehicle.
3. ABS Module Programming Procedure

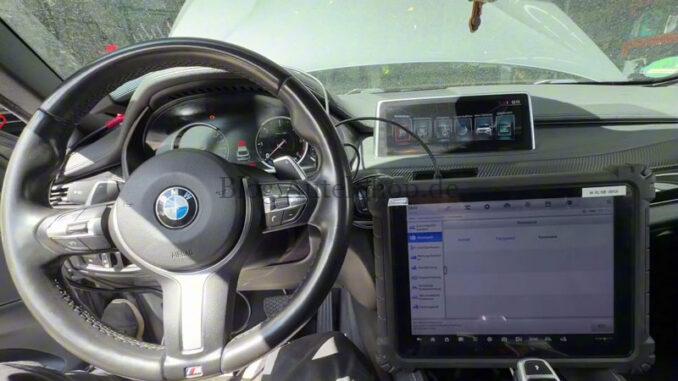

- Connect MaxiSYS Ultra via Ethernet or stable USB communication
- Perform full vehicle topology scan

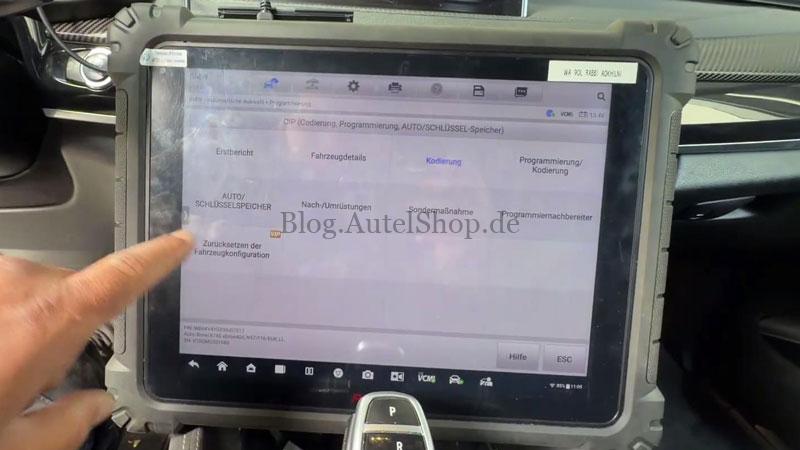

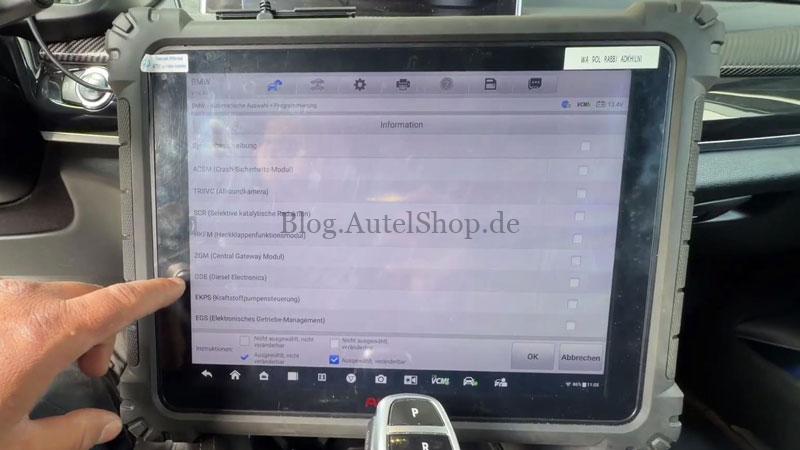

- Enter ECU replacement function
- Select ABS/ESP module
- Choose Programming and Coding
- Select Selective Programming

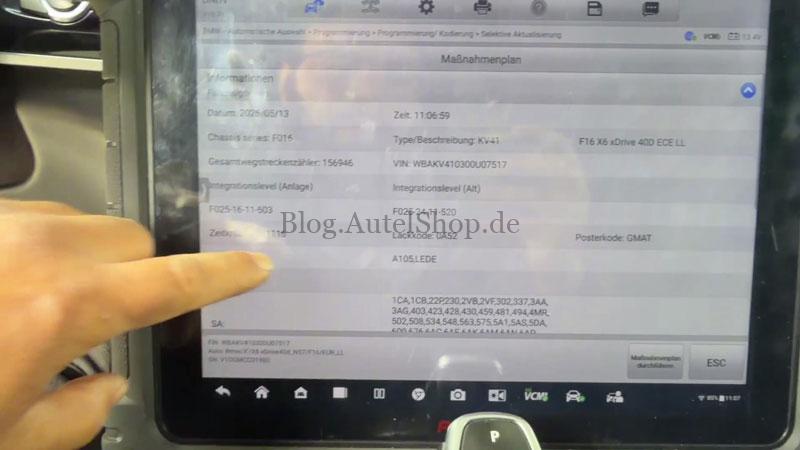

- Start online programming process

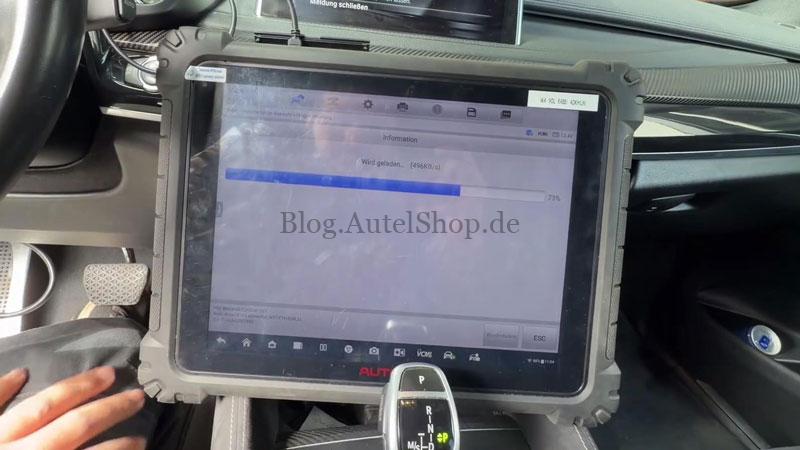

During execution, the system automatically downloads BMW OEM programming data, performs ECU coding, cycles ignition ON/OFF, and clears fault codes after completion.
4. Programming Conditions and Safety Requirements
BMW ECU programming requires stable electrical and network conditions:

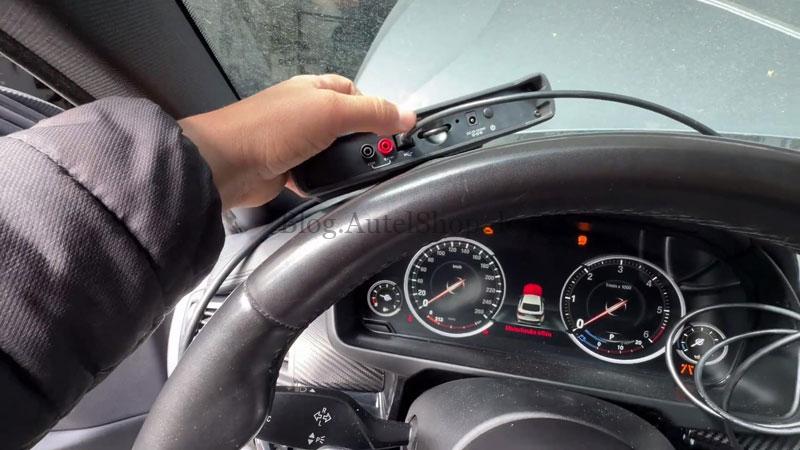

- Ignition must remain ON, engine OFF

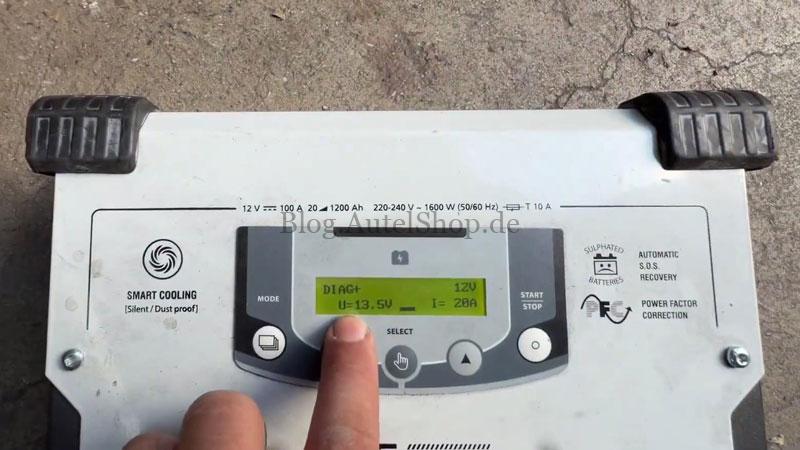

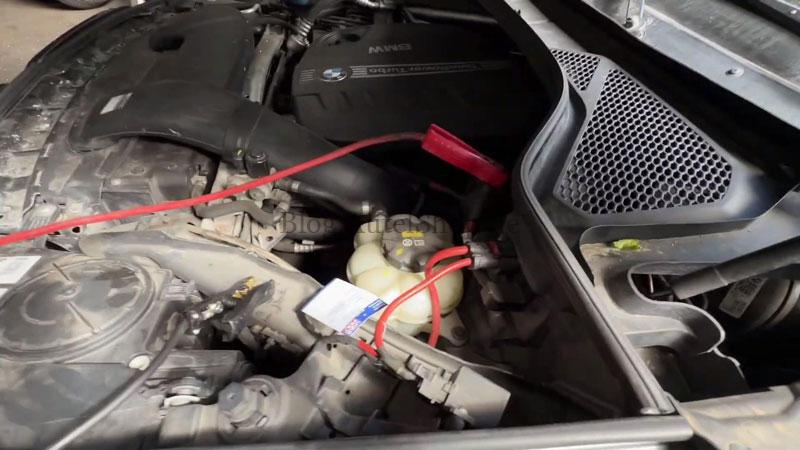

- Battery stabilizer is required in diagnostic mode
- Electrical loads (lights, A/C, infotainment) must be minimized
- Internet connection must remain stable during BMW data download
- Ethernet connection is preferred over wireless communication
Voltage drop or communication interruption may result in incomplete ECU programming or coding failure.

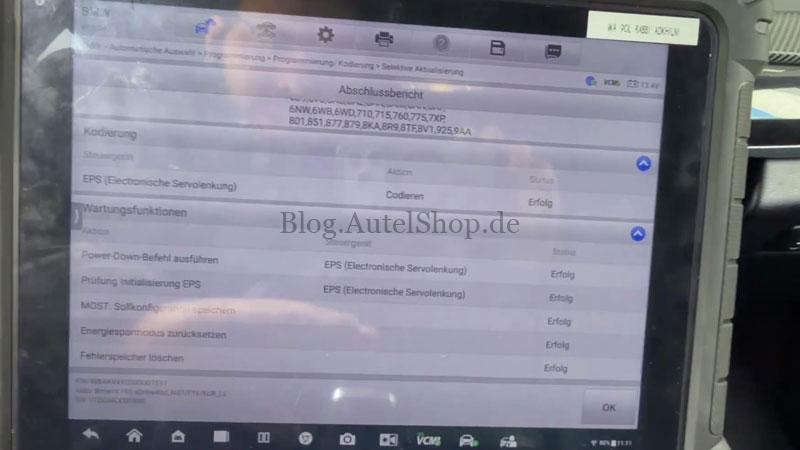

5. Post-Programming Result Verification
After successful programming:
- ABS and ESP warning indicators are cleared
- Steering rack communication is restored
- All related fault codes are automatically erased
- Final scan confirms zero DTCs across affected modules
- A road test is required to confirm ABS and steering system stability under operating conditions.
6. Autel Ultra Technical Positioning (BMW Programming Context)
The MaxiSYS Ultra integrates ECU programming, topology scanning, and online coding into a single diagnostic platform designed for BMW workshop workflows.
Compared with the Autel IM608, which may rely on additional external configuration for stable BMW online programming, the Autel Ultra provides integrated communication architecture and direct programming execution within the same device.
7. Technical Summary
BMW X6 ABS programming with the Autel MaxiSYS Ultra is based on three core technical requirements:
- Stable voltage supply during ECU communication
- Topology-based pre-diagnosis of CAN and FlexRay networks
- Selective Programming to isolate and update only the replaced module
Topology scan and communication layer analysis are critical for identifying ECU status before programming begins, especially in ABS and stability control system replacement scenarios.
