I had the OTOFIX D1 Lite with me while traveling, so when a 2010 Honda Insight showed up with an Integrated Motor Assist warning, I had a good opportunity to put the scanner to work.

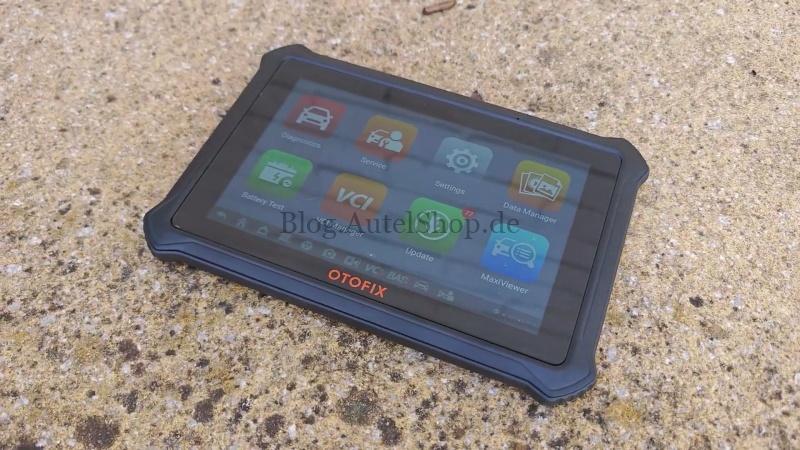

The D1 Lite is a small all-system diagnostic tablet with bidirectional controls and a wide range of service functions. After using it on this Insight and other vehicles, I found the software to be one of the better parts of the tool.
As a compact scanner, it covers a lot of ground. The main limitations are the lack of ECU coding and the update model after the initial included period.
Who Should Buy It
I’d consider the D1 Lite for:
- DIY users who want full-system diagnostics.
- Mobile or traveling technicians.
- Technicians who want a compact backup scanner.
- Users who need service functions and bidirectional tests.
If ECU coding is part of your regular work, this isn’t the tool I’d choose.
Real Workshop Notes
2010 Honda Insight Hybrid

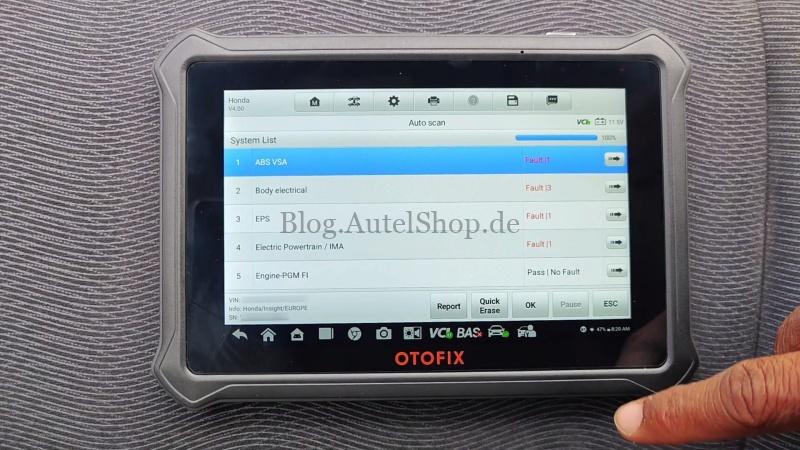

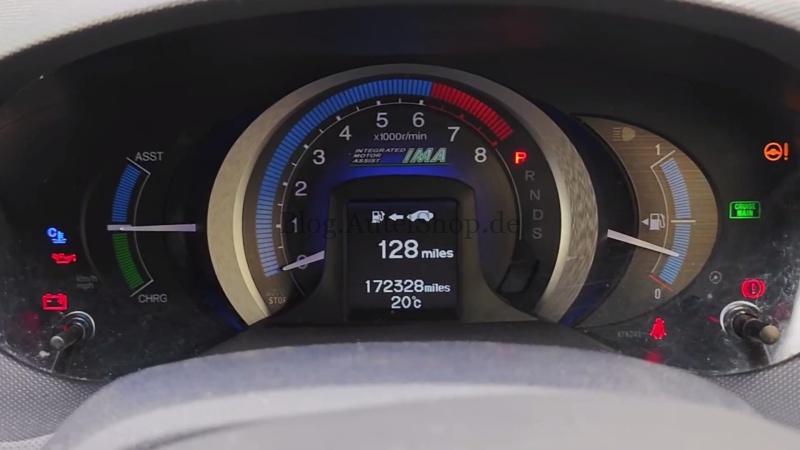

The Insight had an Integrated Motor Assist warning. The all-system scan took 2 minutes 12 seconds and returned six fault codes.
The one that mattered was P0A7F — Hybrid Battery Pack Capacity Deterioration. On a 16-year-old hybrid, significant battery degradation is certainly plausible.

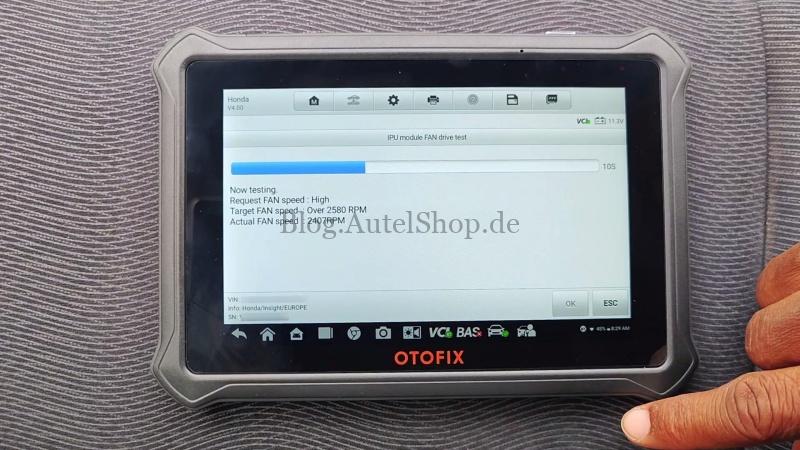

I also checked the four hybrid battery cell-voltage sensors and ran the battery cooling-fan bidirectional test. The sensors reported no failures, and the fan passed its low-, medium-, and high-speed tests.
That didn’t prove the battery pack was the only possible cause. Bus-bar and sensing-cable connections would still need to be checked. But the D1 Lite gave me enough information to narrow the diagnosis instead of stopping at the fault code.
What I Liked

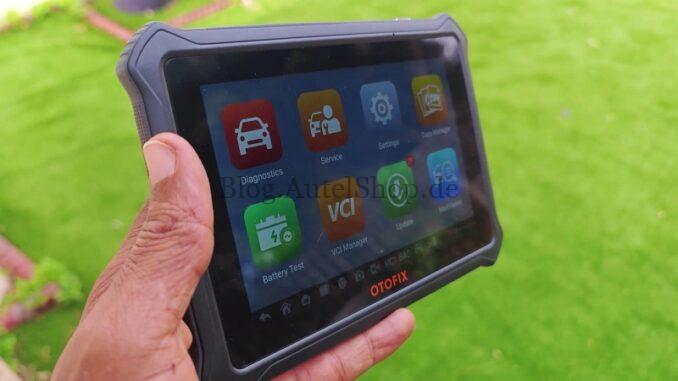

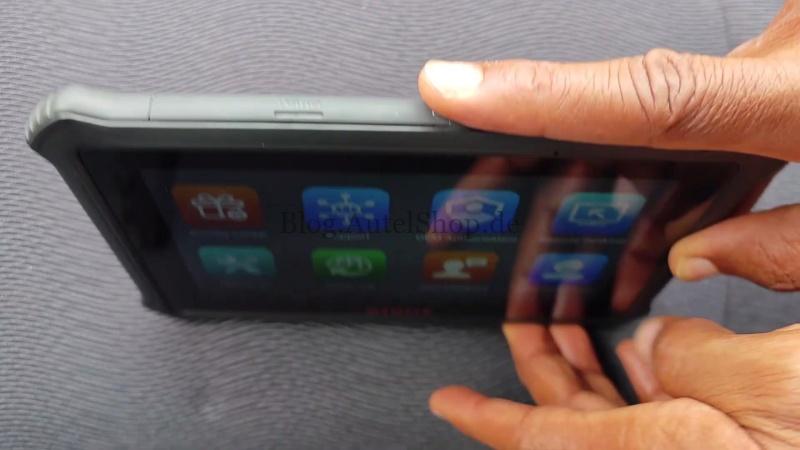

- Compact size: Easy to carry while traveling and useful as a backup scanner.
- All-system diagnostics: Gives access to much more than basic OBD-II codes.

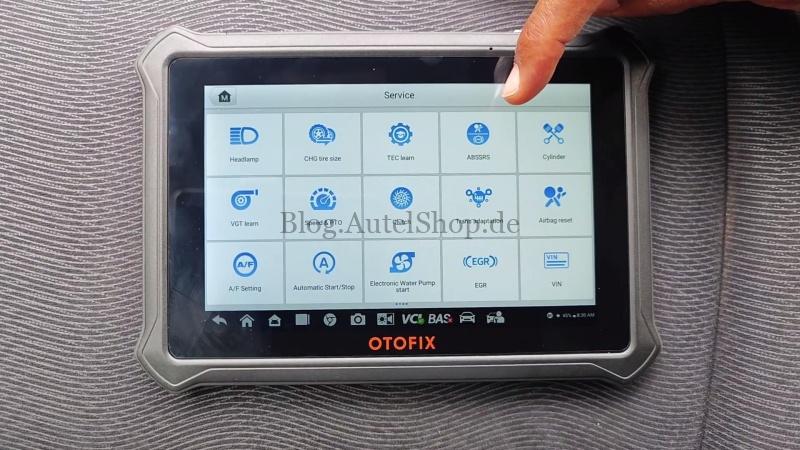

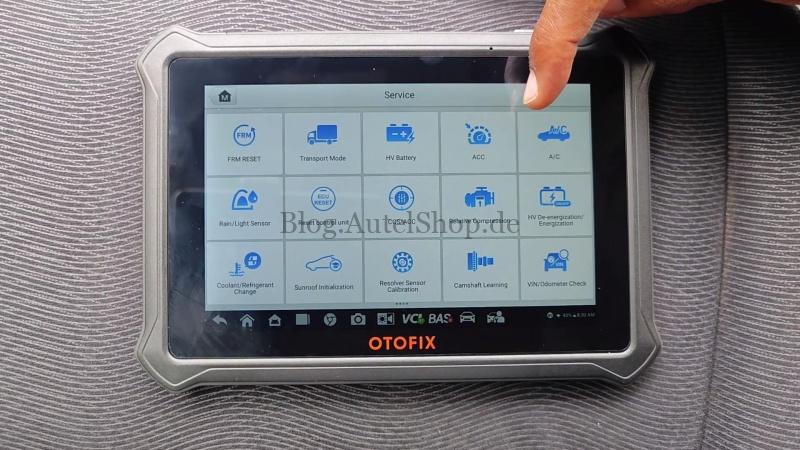

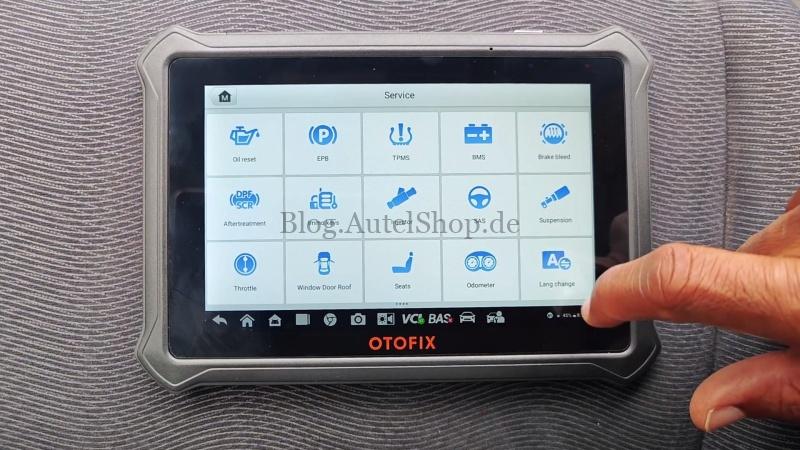

- 47 service functions tested: More than the 38 advertised, although actual coverage depends on the vehicle.
- Bidirectional controls: Useful for checking components such as the hybrid battery cooling fan.
- Mature software: Compared with other third-party scan tools I’ve used, it feels more polished, with fewer bugs and fewer cases where a listed function doesn’t work as expected.
- Good display: Clear and easy to work with.
- Decent scan speed: Not a standout feature, but perfectly usable for normal diagnostic work.
What Could Be Better
- No ECU coding.
- Update cost after two years: The first two years of updates are included, then the subscription is around $120.
- Subscription concerns: I’ve seen complaints from users about basic functions being affected after a subscription expires. I haven’t personally experienced that. I have three other Autel Diagnostic Tools that are out of subscription, and the functions on those still work normally.
- Vehicle-dependent coverage: The full list of service functions isn’t available on every vehicle.
Would I Buy It Again?
Yes. For a small scanner that can handle full-system diagnostics, active tests, and service functions, the D1 Lite makes a good travel or backup tool.
I wouldn’t make it my only professional scanner, but I’d have no problem putting it back in the bag.
