Autel IM608 II Adds 2017 Nissan Pathfinder Smart Key by OBD

Today I’m going to program an additional smart key for 2017 Nissan Pathfinder with Autel MaxiIM IM608 Pro II by OBD. With an original key at hand, let’s access the system for scanning at first.



IM608 II Nissan Pathfinder(EU) IMMO Car List

Year System Add key All keys lost Read password Remote learning IMMO part placement
2005/01-2010/01 Immobilizer, smart system √ (by OBD) √ (by OBD) √ (by OBD) √ (by OBD) BCM/ECM

(partially supported by OBD)

2010/02-2012/08 Immobilizer, smart system √ (by OBD) √ (by OBD) √ (by OBD) √ (by OBD) BCM/ECM

(partially supported by OBD)

2012/09-2014/03 Immobilizer, smart system √ (by OBD) √ (by OBD) √ (by OBD) √ (by OBD) BCM/ECM

(partially supported by OBD)

2014/04-2016/05 Immobilizer, smart system √ (by OBD) √ (by OBD) √ (by OBD) √ (by OBD) BCM/ECM

(partially supported by OBD)

2016/06-2016/11 Immobilizer, smart system √ (by OBD) √ (by OBD) √ (by OBD) √ (by OBD) BCM/ECM

(partially supported by OBD)

2016/12-2021/06 Immobilizer, smart system √ (by OBD) √ (by OBD) √ (by OBD) √ (by OBD) BCM/ECM

(partially supported by OBD)

-2005/01 Immobilizer, smart system √ (by OBD) √ (by OBD) √ (by OBD) √ (by OBD) BCM/ECM

(partially supported by OBD)

2021/07-2022/06 Immobilizer, smart system Not supported √ (by OBD) Not supported √ (by OBD) BCM/ECM

(partially supported by OBD)

2021/07-2022/06 Immobilizer, smart system √ (by OBD) Not supported √ (partially supported by OBD) √ (by OBD) BCM/ECM

(partially supported by OBD)

2022/07- Immobilizer, smart system Not supported √ (by OBD) Not supported √ (by OBD) BCM/ECM

(partially supported by OBD)

2022/07- Immobilizer, smart system √ (by OBD) Not supported √ (partially supported by OBD) √ (by OBD) BCM/ECM

(partially supported by OBD)

Procedure

Connect Autel IM608 II to OBD and identify model firstly.

IMMO status scan >> Add key(guided) >> Start

Execution of this function will erase all learned keys of the vehicle. Prepare all keys of the vehicle. At most 4 keys can be learned. Press “Yes” to continue.

  1. Turn off the ignition.
  2. Turn on the hazard warning lamp.
  3. Open and close the driver door once.



(For adding key, you’ll need all keys present to be programmed cause it will erase all and need to be programmed all keys again.)



Place the back of the Universal Smart Key against the ignition.

Operate according to the following procedure.

  1. Press push-button ignition switch for 2 seconds or more and turn ignition switch to the ON position.



Are the ignition and dashboard in normal condition after they are turned on? Yes.

Turn off the ignition and wait for 3s!

Press the push start button once, attach the smart key that needs to be programmed to the push start button.

Whether the instrument light lights up automatically? Yes

(Remember to take out the programmed key outside when programming.)



Program success.



Press “Yes” to add next key, because I need to program the original key again.

Just repeat to do the same process as before.



Once programming finished, turn off the ignition and wait for 3s!

Press the start/stop button, and attach the first learned smart key on the start/stop button within 5s. And the instrument will automatically light up.

Turn off the ignition and wait for 3s!



Key programming succeeded, perform followings to check the keys:

Open and close the door once, click the unlock and lock key once, start the engine and wait for 5s.

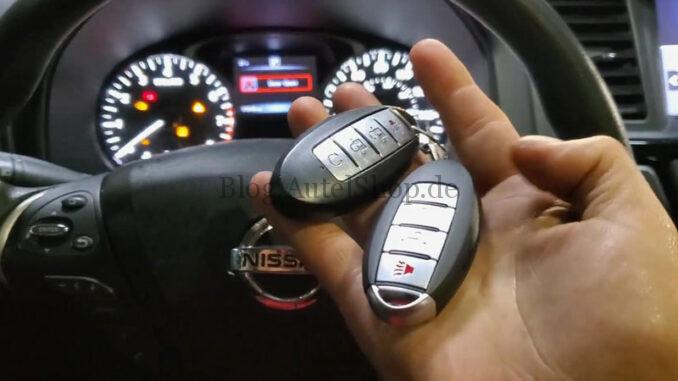

Test the keys, both can work well.

Done.



Autel IM608 II is a pretty amazing tool that it does a lot of really cool things!
