Autel MaxiIM IM608 PRO II can add 2019 Ford Explorer smart keys by OBD successfully. Besides, it also support to program all keys lost and read password. Please refer to the following table for the supported immo car list.
IM608 II Ford(EU) Explorer IMMO Car List
| Year | System | Add key by OBD | All keys lost by OBD | Read password by OBD | Remote learning by OBD | IMMO part replacement |
| 2011-2015 | Immobilizer(CAN) | √ | √ | √ | √ | ECM, BCM |
| 1997-2001 | Immobilizer(PWM) | √ | √ | √ | √ | ECM, IC |
IM608 II Ford(US) Explorer IMMO Car List
| Year | System | Add key by OBD | All keys lost by OBD | Read password by OBD | Remote learning by OBD | IMMO part replacement |
| 1998-2001 | Immobilizer(PWM) | √ | √ | √ | √ | ECM, IC |
| 2001-2003 | Immobilizer(PWM) | √ | √ | √ | √ | × |
| 2004-2005 | Immobilizer(PWM) | √ | √ | √ | √ | × |
| 2006-2010 | Immobilizer(CAN) | √ | √ | √ | √ | ECM, IC |
| 2010 | Immobilizer(CAN) | √ | √ | √ | √ | ECM, IC |
| 2011-2015 | Immobilizer(CAN) | √ | √ | √ | √ | ECM, BCM |
| 2011-2015 | Keyless System(CAN) | √ | √ | √ | Not Required | ECM, BCM, PEPS |
| 2016-2017 | Immobilizer(CAN) | √ | √ | √ | Not Required | × |
| 2016-2017 | Keyless System(CAN) | √ | √ | √ | Not Required | × |
| 2018-2019 | Immobilizer(CAN) | √ | √ | √ | Not Required | ECM, BCM, ESCL |
| 2018-2019 | Keyless System(CAN) | √ | √ | √ | Not Required | ECM, BCM, ESCL |
| 2020- | Immobilizer(CAN) | √ | √ | √ | Not Required | × |
| 2020- | Keyless System(CAN) | √ | √ | √ | Not Required | × |
How to add 2019 Ford Explorer smart key via OBD?
Here’s taking Autel IM608 II to program a new smart key as demonstration.
Connect IM608 II tablet to OBD,
IMMO >> Accept >> Ford >> Automatic selection >> Read >> OK >> Smart key >> Yes >> Immo status scan >> Erase codes if having >> Add key >> Start
Notice:
If the factory alarm of the vehicle is activated, you need to deactivate the factory alarm first before you can learn the keys.
Note: this procedure will not erase existing keys.
Notice: it is normal that the instrument panel turns black when performing this function.
Turn the ignition to the ON position or open and close the driver door 1 time.
Please wait about 3-10 minutes for security accessing…
Learned keys: 2
Place the smart key to be leaned into the slot, which is usually
- In the armrest box;
- In the cup holder.
- In the glove box.
Learning key, please wait…
Current number of keys is 3.
Learning successful.
Press “Yes” to learn next key, “No” to complete.

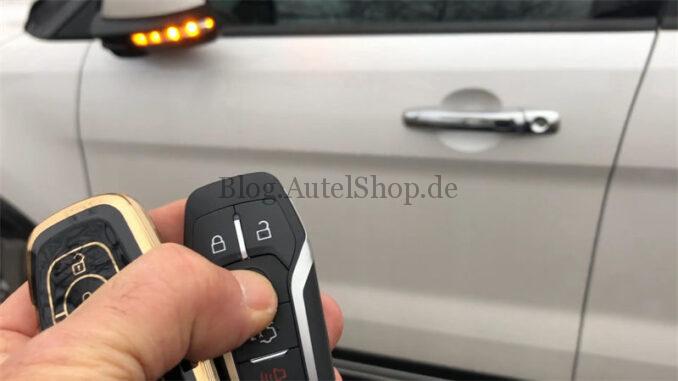

Test the new key, it can work normally.
Done!
