Autel IM508S Add Renault Lodgy UCH Continental Key Success

Today I’m going to show how to add a Renault Lodgy key with Autel MaxiIM IM508S by OBD. To finish the job, you’ll need to obtain the IMMO code first. Next, I’ll will explain the procedure in detail.



IMMO >> Accept >> Renault >> Automatic selection >> Read >> OK >> UCH(Continental) >> Yes >> Immo status scan >> Add key >> Key learning(with IMMO code) >> Start

Switch hazard ON and ignition OFF.





Note:

  1. Use the learning code(28 digits) below and VIN(17 digits) for calculation to obtain the IMMO code(39 digits).
  2. Obtain the IMMO code(39 digits) from the Renault dealer or by contacting technical support.
  3. Enter the IMMO code(39 digits) and then press OK to continue.
  4. Do not disconnect the device or exit this interface before obtaining the IMMO code(39 digits).



* Be careful and DO NOT enter wrong code, otherwise, you’ll have to get a new code from the dealer.



Autel IM508S has calculated the PIN code.





Do you have an working key or have generated a dealer key? Yes

Insert key. Switch ignition on. Max 4 keys allowed.

Programming successful.

Do you want to program more keys? Yes

Remove key. Insert next key. Switch ignition on.

Programming successful.



Remove key and disconnect the tool. Insert key. Start engine to complete procedure.

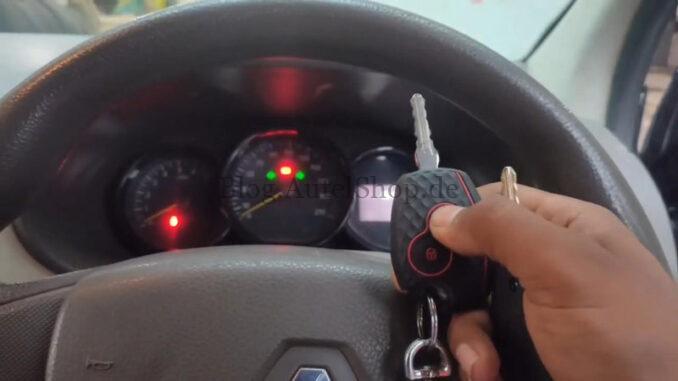

Test the new key. It can successfully start the car, and remote works OK.

Easy done.
