Autel BLE-A001 Sensor is a pre-programmed Bluetooth low energy TPMS sensor for Tesla and latest BLE-equipped vehicles.
Features
- Fit & Go
– OE-level functionality
– Tesla-ready pre-programmed Bluetooth TPMS sensors.
– Compatible with Tesla 3, Y, S and X models with BLE TPMS Sensors.
- Built for Durability & Long Life
– Automotive-grade Bluetooth processor.
– 6 years of battery lift.
- Programmable Bluetooth Low Energy(BLE) Sensors
– Programmable for new vehicles using Bluetooth TPMS for smarter, more connected tires.
– Program with new Autel Maxi TS900 tablet and ITS600 tablet.

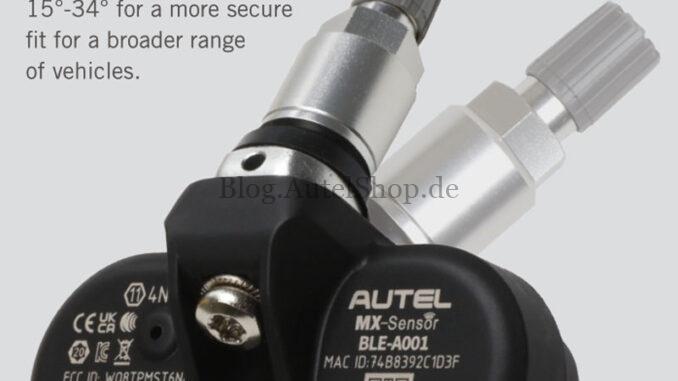

- Adjustable-Angle Sensor
15°- 34° for a more secure fit for a broader range of vehicles.
Parameters
| Battery Life | ≥6 years |
| Operating Temperature | -40℃ to +105℃ |
| Storage Temperature | -40℃ to +105℃(Recommended ≤35℃) |
| Operating Humidity | ≤90% |
| Operating Frequency | 2.4G(Bluetooth) |
| Pressure Monitoring Range | 0-800Kpa |
| Pressure Reading Accuracy | ±10Kpa |
| Temperature Reading Range | -40°C to +105°C |
| Temperature Reading Accuracy | ±5°C |
| G Sensor Reading Accuracy | ±15°C |
| Transmission Power | 5 dbm |
| Battery | 550mAh |
| Dimensions(W*H*D) | 63.6 x 33.6 x 22.6mm |
| Weight(Without Valve) | 24.3g |
Installation Guide
- Loosening The Tire
Remove the valve cap and core, deflate the tire. Use the bead loosener to unseat the tire bead.
CAUTION: The bead loosener must be facing the valve.
- Dismounting The Tire
Clamp the tire onto the tire changer, and adjust the valve at 1 o’clock relative to the tire separation head. Insert the tire tool and lift the tire bead onto the mounting head to dismount the bead.
CAUTION: This starting position must be observed during the whole dismounting process.
- Dismounting The Sensor
Remove the fastening screw and the sensor from the valve stem with a screwdriver, and then loosen the nut to remove the valve.
- Mounting Sensor & Valve
Step1. Slide the valve stem through the valve hole of the rim.
Step2. Tighten the screw-nut with 4.0 N·m with the help of the fixed rod.
Step3. Adjust the installation angle so that the BLE-A001 Sensor fits the rim tightly, and then tighten the screw.
Step4. The sensor and valve are now installed.
- Mounting The Tire
Place the tire on the rim, make sure that the valve faces the separation head at an angle of 180°. Mount the tire over the rim.
CAUTION: The tire should be mounted to the wheel using tire changer manufacturer’s instructions.
Autel Tesla Sensor
