How to use Autel IM608 II to program 2018 Kia Niro all smart keys lost by OBD? Read this article to learn the procedure.
- Generate Key
Put a Autel Universal Key into XP400Pro key slot.
Universal key >> Accept >> Universal key generation >> North America >> Kia >> Type by model >> NIRO(DE EV) >> 2018 >> Kia NIRO(DE EV) 2016-2021 >> Generate universal key
Generating universal key…
Key generation is successful.
- Read Pincode
IMMO >> Accept >> Kia >> Manual selection >> America >> NIRO(DE HEV) >> 2017-2021 >> Smart key >> OK >> Control unit >> Read immobilizer password >> Read Pin code(47 smart card)
This function only supports models with 47 chip type smart card.
Please ensure the key type is correct!
Press “Yes”.
Turn the Hazard warning light on.
Turn the ignition off(note: the instrument screen is black).
Open and then close the driver door once!
Reading password…
Autel IM608 Pro2 has read out the password: 511576
- Learn Key
Keyless system >> Remote control learning >> Smart key learning
This function supports add key and all key lost;
Performing this function will erase all existing keys, all the old keys must be relearned again to be able to use normally.
Press “Yes” to continue.
Turn the ignition off(note: the instrument screen is black).
Open and then close the driver door once!
Enter the 6-digit security code: 511576
Press “Yes” to confirm the security code.
Note! Click OK to complete the following steps:
Within 5s after OK is pressed, use the back or top of the smart key to hold down the START button for 5s until the anti-theft lamps flash.
(If the operation failed with the prompts, please remove the key case and re-execute the above steps so that the key chip can be successfully programmed).
Programming succeeded.
Press No to complete.
Number of current keys: 1
Please exit the system to the vehicle selection menu and check if the keys is programmed successfully.

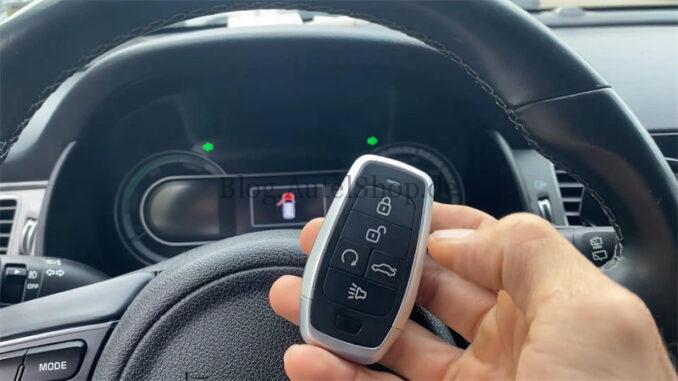

Test the new key, it can work normally.
Done.
