This step-by-step guide demonstrates how to use the Autel IM608 II to program for 2010 – 2014 Honda CR-V when all blade keys are lost. Follow these clear instructions to successfully complete key programming and immobilizer synchronization.
Following I’m gonna use the A05TAA 08-13 251 remote key to complete.
IMMO >> Honda >> Automatic selection >> Read >> OK >> Blade Key >> Yes >> Hot Function
If the OBD diagnostic connector of 16 pins is not equipped, the adapter of Honda 3pin or 5pin is needed to connect. If equipped, click OK to continue.
Please turn the ignition on.
Autel IM608 Pro2 shows: 4th blade key system.
All keys lost >> Start
Turn the ignition off within 15s.
Turn the ignition on using the same key within 15s.
Key programming succeeded.
Press No to complete.
Turn the ignition off within 15s.
Turn the ignition on using the same key within 15s.
Turn the ignition off within 15s.
Turn the ignition on using the same key within 15s.
Does the immobilizer indicator lamp go out? Yes.
Turn the ignition off within 15s.
Please turn the ignition on.
The registration of the key is completed.
Turn the ignition off.
Check all keys to ensure that all of them can start the engine.

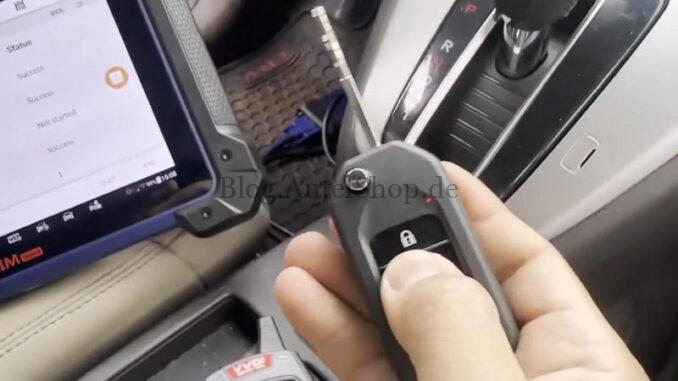

Test the new key, it can start the car. And remote does work.
Done.
This is using Autel IM608S II to program 2010 – 2014 Honda CR-V all keys lost successfully.
