How to Program 2020 Kia Carnival All Keys Lost with Autel KM100?

The Autel MaxiIM KM100 can program a 2020 Kia Carnival in an all-keys-lost situation directly through OBD. This procedure covers both immobilizer key learning and remote learning, and all existing keys will be erased during programming.

Enter Key Learning

1. On the Autel KM100, go to:

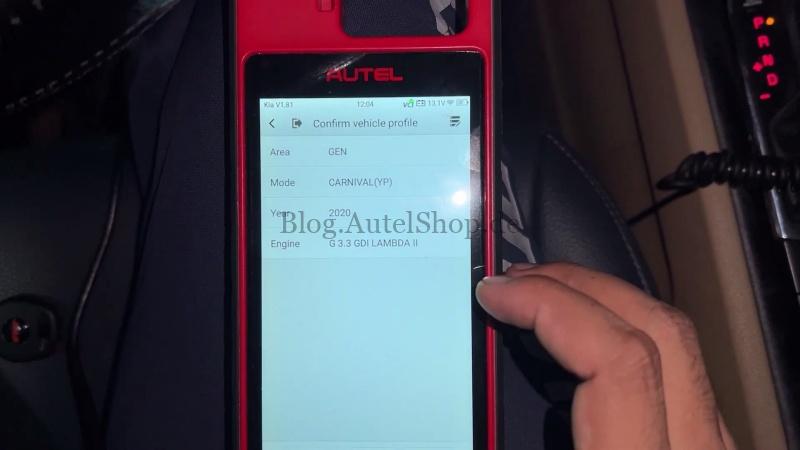

   IMMO → AutoVIN → GEN → OK → Blade Key → Control Unit → Immobilizer → Remote Control Learning → Key Learning → Start

2. Confirm the warning message and proceed. The system will erase all stored keys, so every key that needs to remain usable must be relearned.

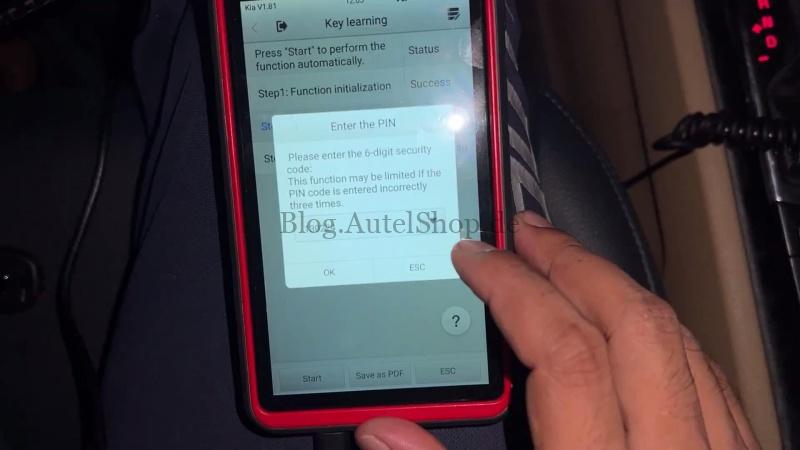

3. Enter the 6-digit security code 130224 and confirm.

Program the Keys

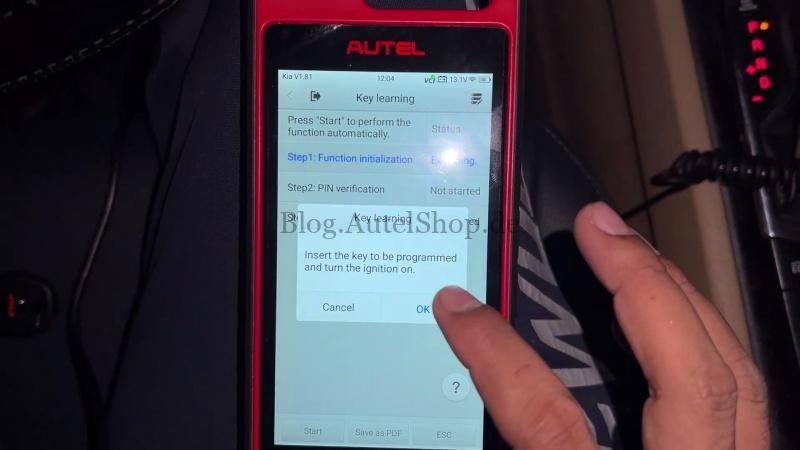

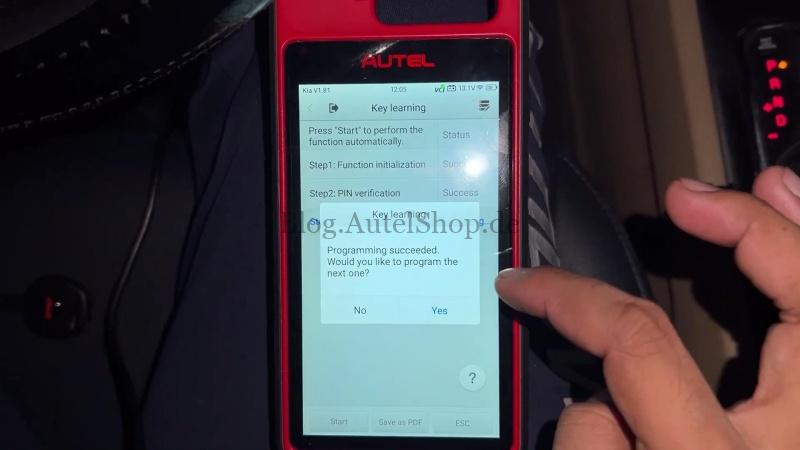

1. Insert the first key, switch the ignition ON, and start the learning process. Once the tool reports Programming Succeeded, continue to the next key.
2. Insert the second key, turn the ignition ON, and repeat the procedure. After successful programming, select No to finish the key learning session.

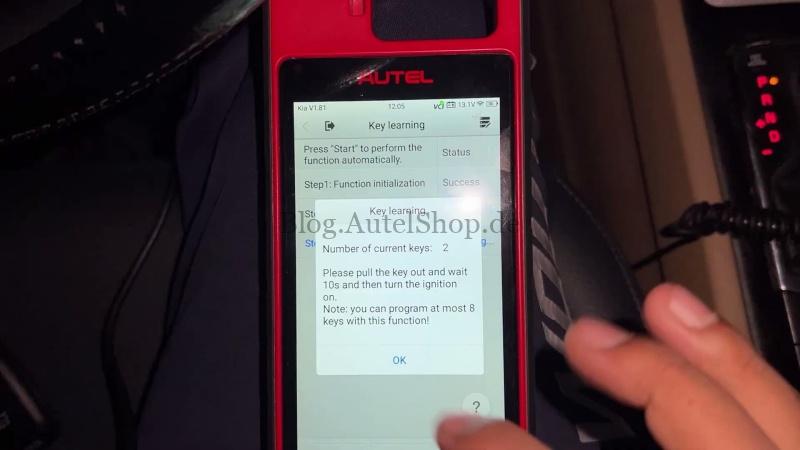

3. Check the key count displayed by the MaxiIM KM100. In this case, the vehicle reports 2 programmed keys.
4. Remove the key, wait about 10 seconds, then switch the ignition ON again.

Note: This function supports programming up to 8 keys.

Learn the Remote

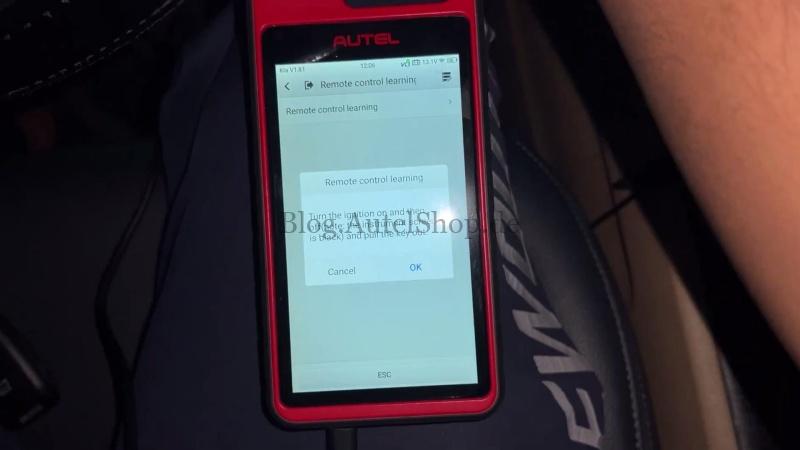

1. Return to Remote System → Remote Control Learning on the Autel KM100E.
2. Turn the ignition ON and then OFF, remove the key, and press either the LOCK or UNLOCK button for more than one second.
3. Wait for the confirmation message indicating the remote has been learned successfully.

Verification

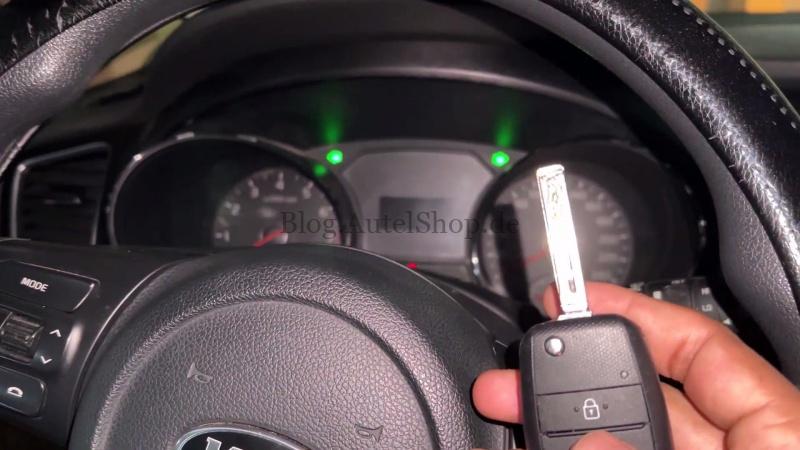

Start the vehicle with the newly programmed key and confirm the remote lock/unlock functions operate normally.
