Autel KM100 Read Pincode & Add 2022 Hyundai i10 ID4A Success

Autel MaxiIM KM100 IMMO Key Programmer can support to read pincode & add ID4A keys for 2022 Hyundai Grand i10 successfully. Besides, it also supports all keys lost & remote learning. Details please check below:



Autel KM100 Coverage: Hyundai(EU)

Vehicle model Year System Add key All keys lost Read password Remote learning IMMO part replacement
I10(IA) 2014-2016 immobilizer By OBD By OBD By OBD By OBD ECM, SMARTRA
I10(IA) 2014-2016 Keyless system By OBD By OBD By OBD × ECM, SMK, ESCL
I10(IA) 2017- immobilizer By OBD By OBD By OBD By OBD ECM, SMARTRA
I10(IA) 2017- Keyless system By OBD By OBD By OBD × ECM, SMK, ESCL
I10(PA) 2008-2010 Immobilizer(Other) By OBD By OBD By OBD By OBD ECM, SMARTRA
I10(PA) 2008-2010 Immobilizer(TCI-U) By OBD By OBD By OBD By OBD ECM, SMARTRA
I10(PA) 2011-2017 Immobilizer By OBD By OBD By OBD × ECM, SMARTRA



Autel KM100 Program 2022 Hyundai Grand i10 Key

  1. Generate Key

Put the Autel IKEY Smart Key into KM100 slot,

Universal key >> Hyundai Grand i10(AI3) 2020-2022 >> Generate universal key

Completed.



  1. Read Pin Code

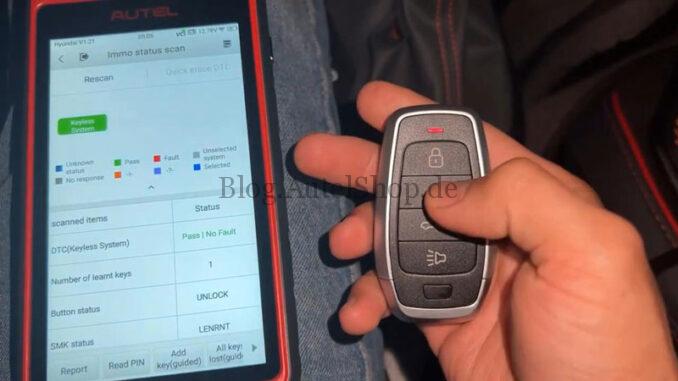

IMMO >> Hyundai >> Manual selection >> Europe >> I10(AC3) >> 2020- >> Smart key >> Yes >> Immo status scan >> Read PIN >> Read Pin code(4A Smart card)



This function only supports models with 4A chip type smart card. Please ensure the key type is correct! Press “Yes”.



Press the START button, turn the Hazard warning light on.

The password that is read: 439476



  1. Add Keys

Add key >> Start

This function supports add key and all key lost.

Performing this function will erase all existing keys, all the old keys must be relearned again to be able to use normally. Press “Yes” to continue.



Turn the ignition off.

(Note: the instrument screen is black.)

Open and then close the driver door once!



Please enter the 6-digit security code: 439476

OK >> Yes



Within 5s after OK is pressed, use the back or top of the smart key to hold down the START button for 5s until the anti-theft lamps flash.

(If the operation failed with the prompts, please remove the key case and re-execute the above steps so that the key chip can be successfully programmed.)



Programming succeeded.

Press “Yes” to program next one, “No” to complete.



Test the key, it can normally work.

Successfully done.
