Autel IM508 Program 2022 Hyundai i10 ID4A All Keys Lost

Autel MaxiIM IM508 Key Programming Tool can successfully program 2022 Hyundai i10 ID4A all keys lost. The operation process needs to read password first, IM508 serves it free. Autel IM608 can do the job as well.



Following the procedure to learn how to do.

Connect IM508 into OBD interface.



Step1. Read Pincode

IMMO >> Accept >> Hyundai >> Manual selection >> Europe >> GRAND i10(AI3) >> 2020- >> Smart key >> Yes >> Immo status scan >> Read PIN >> Read Pin code(4A smart card)



This function only supports models with 4A chip type smart card.

Please ensure the key type is correct!



Press the START button, turn the Hazard Warning Light on.

The password that is read: 439476





Step2. Program Key

All keys lost >> Start



This function supports add key and all key lost;

Performing this function will erase all existing keys, all the old keys must be relearned again to be able to use normally, press “Yes”.



Turn the ignition off.

(Note: the instrument screen is black)

Open and then close the driver door once!



Autel IM508 will automatically enter the 6-digit security code.

OK >> Yes



Note! Click “OK” to complete the following steps:

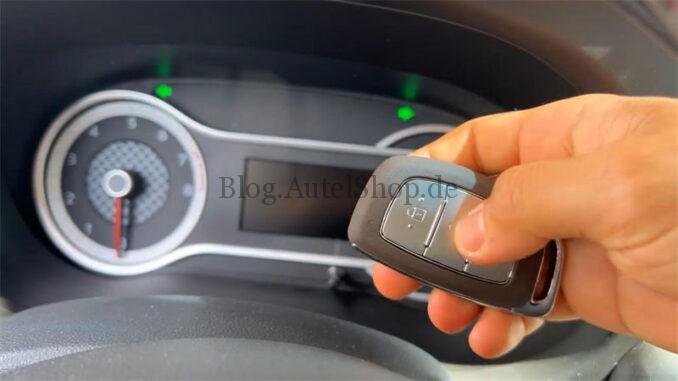

Within 5s after OK is pressed, use the back or top of the Universal Smart Key to hold down the START button for 5s until the anti-theft lamps flash.

(If the operation failed with the prompts, please remove the key case and re-execute the above step so that the key chip can be successfully programmed)

Press “OK”.



Programming succeeded.

Press “No” to complete.



Number of current keys: 1



Test the new key, it can normally start the car.

Done.
